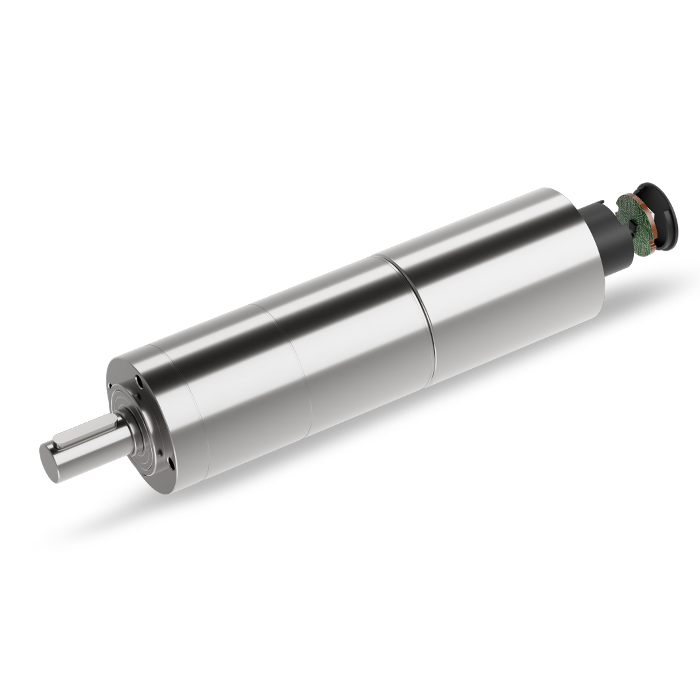

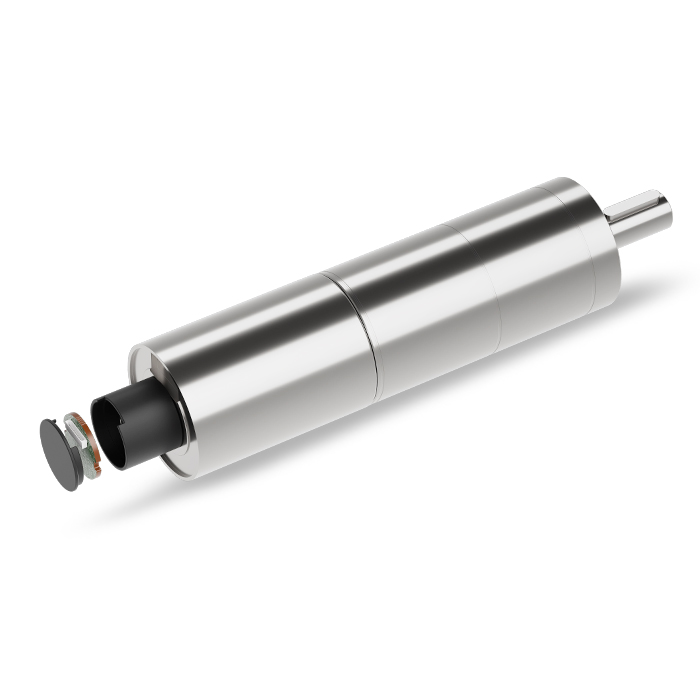

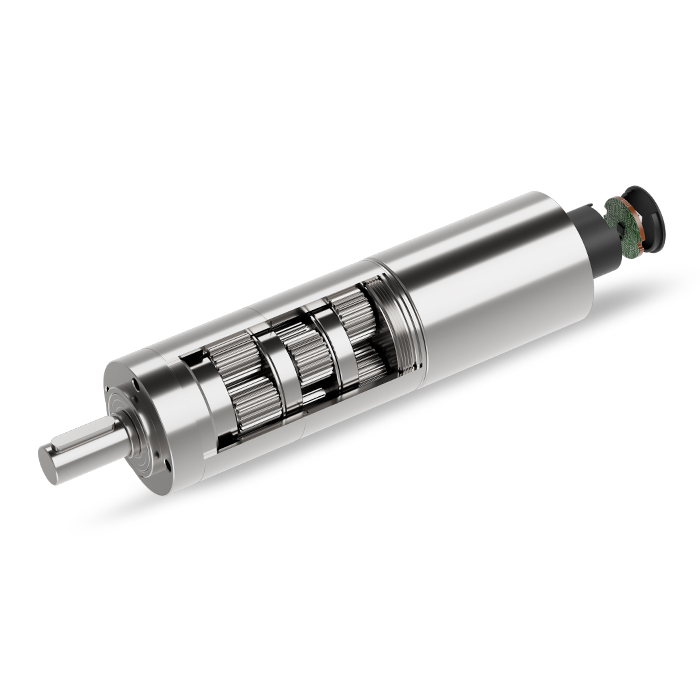

Φ42mm 行星減速箱(SMD系列)
型號:ZWSMD042042
直徑:42
長度:47.8~104.5
最大傳輸功率(W) :650
最大連續轉矩(Nm):35
最高連續輸入轉速:6000
環境溫度(℃) :-40~+100
輸出端軸承:滾珠軸承
* 該齒輪箱可根據客戶要求定制,并與對應電機整體出售。
減速箱技術數據
級數 | 1 | 2 | 3 | 4 |
減速比 | 3.9,5.3 | 16,21,26,28,35 | 62,83, 103,111, 138,150, 172,186, 231 | 243,326,406, 439,546,590, 679,734,794, 913,987,1135,1227,1526 |
最大傳連續輸功率(W) | 650 | 460 | 200 | 40 |
最大瞬時傳輸功率(W) | 820 | 580 | 250 | 50 |
最大連續轉矩(Nm) | 4.5 | 18 | 32 | 35 |
最大瞬時轉矩(Nm) | 7 | 24 | 46 | 50 |
最高連續輸入轉速(rPm) | 6000 | 6000 | 6000 | 6000 |
最高瞬時輸入轉速(rPm) | 7500 | 7500 | 7500 | 7500 |
最大效率(%) | 96 | 93 | 90 | 87 |
空載平均空回(°) | 0.5 | 0.5 | 0.5 | 0.5 |
最大軸向動態載荷(N) | 200 | 200 | 200 | 200 |
最大徑向載荷(離法蘭4mm處)(N) | 350 | 525 | 750 | 750 |
齒輪箱長度L1(mm) | 47.8 | 66.4 | 86 | 104.5 |
重量(G) | 400 | 540 | 660 | 800 |
推薦型號
型號 | 額定電壓 (V) |
空載數據 | 負載數據 | 總長 (mm) |
齒輪箱額定容許力矩 (NM) |
齒輪箱瞬間容許力矩 (NM) |
減速比 | 減速箱長L1 (mm) |
||||
空載轉速 (rpm) |
空載電流 (mA max) |
負載轉速 (rpm) |
負載電流 (mA Max) |
轉矩 (gf.cm) |
轉矩 (NM) |
|||||||
ZWSMD042042-3.9 | 24 | 2085 | 600 | 1836 | 9000 | 4623.84 | 0.45 | 118.8 | 4.5 | 7 | 3.9 | 47.8 |
ZWSMD042042-5.3 | 24 | 1534 | 600 | 1351 | 9000 | 6283.68 | 0.62 | 118.8 | 4.5 | 7 | 5.3 | 47.8 |
ZWSMD042042-16 | 24 | 508 | 600 | 448 | 9000 | 18179.2 | 1.78 | 138 | 18 | 24 | 16 | 67 |
ZWSMD042042-21 | 24 | 387 | 600 | 341 | 9000 | 23860.2 | 2.34 | 138 | 18 | 24 | 21 | 67 |
ZWSMD042042-26 | 24 | 313 | 600 | 275 | 9000 | 29541.2 | 2.90 | 138 | 18 | 24 | 26 | 67 |
ZWSMD042042-28 | 24 | 290 | 600 | 256 | 9000 | 31813.6 | 3.12 | 138 | 18 | 24 | 28 | 67 |
ZWSMD042042-35 | 24 | 232 | 600 | 205 | 9000 | 39767 | 3.90 | 138 | 18 | 24 | 35 | 67 |
ZWSMD042042-62 | 24 | 131 | 700 | 115 | 9500 | 68913 | 6.75 | 157 | 32 | 46 | 62 | 86 |
ZWSMD042042-83 | 24 | 98 | 700 | 86 | 9500 | 92254.5 | 9.04 | 157 | 32 | 46 | 83 | 86 |
ZWSMD042042-103 | 24 | 79 | 700 | 70 | 9500 | 114484.5 | 11.22 | 157 | 32 | 46 | 103 | 86 |
ZWSMD042042-111 | 24 | 73 | 700 | 65 | 9500 | 123376.5 | 12.09 | 157 | 32 | 46 | 111 | 86 |
ZWSMD042042-138 | 24 | 59 | 700 | 52 | 9500 | 153387 | 15.03 | 157 | 32 | 46 | 138 | 86 |
ZWSMD042042-150 | 24 | 54 | 700 | 48 | 9500 | 166725 | 16.34 | 157 | 32 | 46 | 150 | 86 |
ZWSMD042042-172 | 24 | 47 | 700 | 42 | 9500 | 191178 | 18.74 | 157 | 32 | 46 | 172 | 86 |
ZWSMD042042-186 | 24 | 44 | 700 | 38 | 9500 | 206739 | 20.26 | 157 | 32 | 46 | 186 | 86 |
ZWSMD042042-231 | 24 | 35 | 700 | 31 | 9500 | 256756.5 | 25.16 | 157 | 32 | 46 | 231 | 86 |
ZWSMD042042-243 | 24 | 33 | 800 | 29 | 10000 | 261091.35 | 25.59 | 175.5 | 35 | 50 | 243 | 104.5 |
ZWSMD042042-326 | 24 | 25 | 800 | 22 | 10000 | 350270.7 | 34.33 | 175.5 | 35 | 50 | 326 | 104.5 |
ZWSMD042042-406 | 24 | 20 | 800 | 18 | 10000 | 436226.7 | 42.75 | 175.5 | 35 | 50 | 406 | 104.5 |
ZWSMD042042-439 | 24 | 19 | 800 | 16 | 10000 | 471683.55 | 46.22 | 175.5 | 35 | 50 | 439 | 104.5 |
ZWSMD042042-546 | 24 | 15 | 800 | 13 | 10000 | 586649.7 | 57.49 | 175.5 | 35 | 50 | 546 | 104.5 |
ZWSMD042042-590 | 24 | 14 | 800 | 12 | 10000 | 633925.5 | 62.12 | 175.5 | 35 | 50 | 590 | 104.5 |
ZWSMD042042-679 | 24 | 12 | 800 | 11 | 10000 | 729551.55 | 71.50 | 175.5 | 35 | 50 | 679 | 104.5 |
ZWSMD042042-734 | 24 | 11 | 800 | 10 | 10000 | 788646.3 | 77.29 | 175.5 | 35 | 50 | 734 | 104.5 |
ZWSMD042042-794 | 24 | 10 | 800 | 9 | 10000 | 853113.3 | 83.61 | 175.5 | 35 | 50 | 794 | 104.5 |
ZWSMD042042-913 | 24 | 9 | 800 | 8 | 10000 | 980972.85 | 96.14 | 175.5 | 35 | 50 | 913 | 104.5 |
ZWSMD042042-987 | 24 | 8 | 800 | 7 | 10000 | 1060482.15 | 103.93 | 175.5 | 35 | 50 | 987 | 104.5 |
ZWSMD042042-1135 | 24 | 7 | 800 | 6 | 10000 | 1219500.75 | 119.51 | 175.5 | 35 | 50 | 1135 | 104.5 |
ZWSMD042042-1227 | 24 | 7 | 800 | 6 | 10000 | 1318350.15 | 129.20 | 175.5 | 35 | 50 | 1227 | 104.5 |
ZWSMD042042-1526 | 24 | 5 | 800 | 5 | 10000 | 1639610.7 | 160.68 | 175.5 | 35 | 50 | 1526 | 104.5 |
